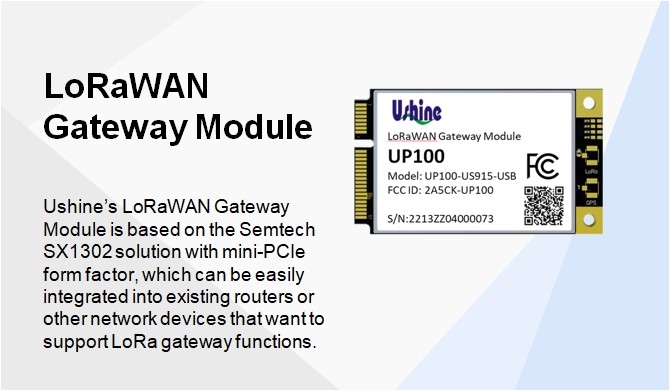

UP100 is a LoRaWAN Gateway Module based on Semtech SX1302 and SX1261 solutions with a mini-PCIe form factor. It can be easily integrated into existing routers or other network devices that support LoRa gateway functions.

►   Mini-PCIe form factor, easy to integrate with various gateway devices
►   Semtech SX1302 baseband processor, extremely low power consumption, no essential of additional heat dissipation
►   Tx power up to 26dBm, Rx sensitivity down to -139dBm@SF12, BW 125KHz
►   Frequency band : US915, AS923, AU915, KR920, IN865, EU868
►   Support an optional USB/SPI interfaces
►   Support an optional SX1261 for Listen Before Talk
►   FCC and NCC certified
